JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

Name: JGX1598A657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering
Brand: Hoan
Price: 1 USD

Best JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering wholesale

Brand Name : Hoan

Model Number : JGX-1598A-657A

Certification : ISO9001:2015

Place of Origin : China

MOQ : 4

Payment Terms : L/C,D/A,D/P,Western Union,T/T,MoneyGram

Strand Construction : 7 x 19

Core Components : Gear, Pump

Size : Custom Size

Accessories : Net

After Warranty Service : Online support

Shock Rsistance : 30g/11ms

Relative Product : Backdraft Damper

Mounting Thread Size : M10

Installation Orientation : Vertical or Horizontal

Maintenance : Low

Vibration Isolation Range : 10Hz to 100Hz

Load Range : 3.5-2000KG

Marketing Type : New Product 2020

Isolation Efficiency : 90%

Working Temperatu : : -55 ~ +120

Contact Now

JGX-1598A Series

JGX-1598A — Building a Protective Barrier for Precision Equipment Through Materials Science

In the pursuit of ultimate reliability for precision instruments and equipment, vibration isolation serves as a critical line of defense to safeguard their performance and lifespan. The JGX-1598A wire rope isolator, introduced by Xi'an Hoan Microwave Co., Ltd., is precisely the crystallization of wisdom in materials science and engineering.

Its core load-bearing component — a bundle of special stainless steel wire ropes — has undergone precise geometric configuration design, exhibiting exceptional mechanical properties: High strength endows it with robust load-bearing capacity, ensuring stable support for equipment; its excellent anti-fatigue characteristics enable it to maintain structural integrity and performance stability even in harsh environments where equipment operates for long periods and repeatedly withstands impact and vibration loads. Additionally, the inherent corrosion resistance of the material itself effectively resists environmental erosion, significantly extending the service life of the vibration isolation system under complex working conditions.

It is precisely with this reliable essence rooted in the material itself that the JGX-1598A constructs an impenetrable vibration barrier for high-value precision equipment.

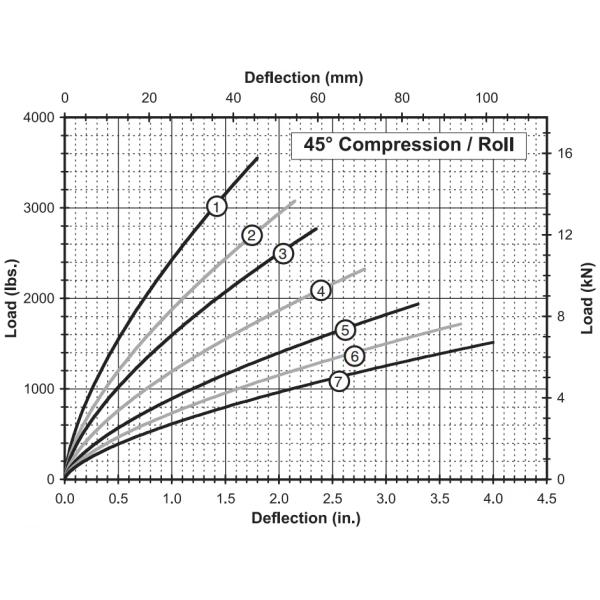

Static-Load Curve

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	657	31.8	1676	849
2	JGX-1598A-557A	557	38.1	1259	609
3	JGX-1598A-515A	515	41.9	1105	504
4	JGX-1598A-428A	428	49.5	821	356
5	JGX-1598A-358A	358	58.4	616	252
6	JGX-1598A-324A	324	67.3	511	196
7	JGX-1598A-285A	285	73.7	427	159

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	463.0	45.7	951	419
2	JGX-1598A-557A	406.2	54.6	741	305
3	JGX-1598A-515A	365.4	59.7	627	250
4	JGX-1598A-428A	304.1	71.1	468	177
5	JGX-1598A-358A	254.2	83.8	350	124
6	JGX-1598A-324A	229.2	84.0	285	98
7	JGX-1598A-285A	201.9	101.6	238	81

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

No	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-1598A-657A	358.6	34.3	524	524
2	JGX-1598A-557A	308.7	40.6	375	375
3	JGX-1598A-515A	267.8	43.2	308	308
4	JGX-1598A-428A	217.9	52.1	215	215
5	JGX-1598A-358A	154.3	61.0	152	152
6	JGX-1598A-324A	124.8	69.9	123	123
7	JGX-1598A-285A	99.9	76.2	98	98

Customer Photos

JGX-1598A-657A Wire Rope Vibration Isolator The Perfect Combination of Materials Science and Engineering

Product Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics,Computers, Machinery	Explosive blast,Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
Rough Terrain Vehicles	Instrumentation, Generators,Electronics	Rough terrain,Poor road conditions, Collision	Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop,Loading/Unloading	Long life, Maintenance-free,Exposure to moisture, Repeated use
Aircraft	Electronics,Computers	High-G maneuvering,Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free,Corrosive environments
Ordnance Equipment	Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers,Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

* Surface treatment of aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
